Details
-
Bug
-
Status: Closed (View Workflow)
-
Critical
-
Resolution: Duplicate
-
10.6.1, 10.5.13, 10.6.5
Description
Several times a day the MariaDB windows services crashes. Every time the same error in the log is shown. Please advise which steps to take to fix it. I am using version:
Server version: 10.6.1-MariaDB - mariadb.org binary distribution
Error log:
2021-11-12 08:27:15 0x37d8 InnoDB: Assertion failure in file D:\winx64-packages\build\src\storage\innobase\trx\trx0trx.cc line 1288
InnoDB: Failing assertion: UT_LIST_GET_LEN(lock.trx_locks) == 0
InnoDB: We intentionally generate a memory trap.
InnoDB: Submit a detailed bug report to https://jira.mariadb.org/
InnoDB: If you get repeated assertion failures or crashes, even
InnoDB: immediately after the mysqld startup, there may be
InnoDB: corruption in the InnoDB tablespace. Please refer to
InnoDB: https://mariadb.com/kb/en/library/innodb-recovery-modes/
InnoDB: about forcing recovery.
211112 8:27:15 [ERROR] mysqld got exception 0x80000003 ;
This could be because you hit a bug. It is also possible that this binary
or one of the libraries it was linked against is corrupt, improperly built,
or misconfigured. This error can also be caused by malfunctioning hardware.To report this bug, see https://mariadb.com/kb/en/reporting-bugs
We will try our best to scrape up some info that will hopefully help
diagnose the problem, but since we have already crashed,
something is definitely wrong and this may fail.Server version: 10.6.1-MariaDB
key_buffer_size=134217728
read_buffer_size=131072
max_used_connections=141
max_threads=65537
thread_count=120
It is possible that mysqld could use up to
key_buffer_size + (read_buffer_size + sort_buffer_size)*max_threads = 139782 K bytes of memory
Hope that's ok; if not, decrease some variables in the equation.Thread pointer: 0x27a7abc4038
Attempting backtrace. You can use the following information to find out
where mysqld died. If you see no messages after this, something went
terribly wrong...
server.dll!my_parameter_handler()[my_init.c:278]
ucrtbase.dll!raise()
ucrtbase.dll!abort()
server.dll!ut_dbg_assertion_failed()[ut0dbg.cc:60]
server.dll!trx_t::commit_in_memory()[trx0trx.cc:1288]
server.dll!trx_t::commit()[trx0trx.cc:1511]
server.dll!trx_commit_for_mysql()[trx0trx.cc:1625]
server.dll!innobase_commit()[ha_innodb.cc:4417]
server.dll!commit_one_phase_2()[handler.cc:1999]
server.dll!ha_commit_one_phase()[handler.cc:1980]
server.dll!ha_commit_trans()[handler.cc:1772]
server.dll!trans_commit_stmt()[transaction.cc:473]
server.dll!mysql_execute_command()[sql_parse.cc:6047]
server.dll!mysql_parse()[sql_parse.cc:8023]
server.dll!dispatch_command()[sql_parse.cc:1899]
server.dll!do_command()[sql_parse.cc:1406]
server.dll!threadpool_process_request()[threadpool_common.cc:395]
server.dll!tp_callback()[threadpool_common.cc:203]
KERNEL32.DLL!LCMapStringEx()
ntdll.dll!RtlAddRefActivationContext()
ntdll.dll!RtlAcquireSRWLockExclusive()
KERNEL32.DLL!BaseThreadInitThunk()
ntdll.dll!RtlUserThreadStart()Trying to get some variables.
Some pointers may be invalid and cause the dump to abort.
Query (0x27a7a987720): SELECTi.ips_id,
i.event_type_id,
i.event_type,
i.category,
i.ts,
i.log_comment,
i.log_decision,
i.log_topwind_user,
i.log_observations,
i.log_actions,
i.log_pictures,
md.meteo_datetime > DATE_SUB(i.ts, INTERVAL 5 MINUTE) as ShowSensor,
md_one_hour_ago.meteo_datetime > DATE_SUB(md.meteo_datetime, INTERVAL 2 HOUR) as ShowSensorDiff,
round(md.temperature,1) as Temp,
sign(round(1/0.2*
(md.temperature-md_one_hour_ago.temperature)
/(TIMESTAMPDIFF(minute,md_one_hour_ago.meteo_datetime,md.meteo_datetime)/60)
)) as Temp_Change_Sign,
round(
(md.temperature-md_one_hour_ago.temperature)
/(TIMESTAMPDIFF(minute,md_one_hour_ago.meteo_datetime,md.meteo_datetime)/60),
1
) as Temp_Change,
round(md.relative_humidity) as Humidity,
sign(round(1/3*
(md.relative_humidity-md_one_hour_ago.relative_humidity)
/(TIMESTAMPDIFF(minute,md_one_hour_ago.meteo_datetime,md.meteo_datetime)/60)
)) as Humidity_Change_Sign,
round(
(md.relative_humidity-md_one_hour_ago.relative_humidity)
/(TIMESTAMPDIFF(minute,md_one_hour_ago.meteo_datetime,md.meteo_datetime)/60),
0
) as Humidity_Change,
md.precipitation as Precip,
sign(
(md.precipitation-md_one_hour_ago.precipitation)
) as Precip_Change_Sign,
round(md.risk_number,0) as Risk,
sign(round(1/5*
(md.risk_number-md_one_hour_ago.risk_number)
/(TIMESTAMPDIFF(minute,md_one_hour_ago.meteo_datetime,md.meteo_datetime)/60)
)) as Risk_Change_Sign,
round(
(md.risk_number-md_one_hour_ago.risk_number)
/(TIMESTAMPDIFF(minute,md_one_hour_ago.meteo_datetime,md.meteo_datetime)/60)
) as Risk_Change
FROM
(
SELECT
e.ips_id,
event_type.event_type_id,
event_type.event_type,
'EventStart' as category,
e.start_datetime as ts,
NULL as log_comment,
NULL as log_decision,
NULL as log_topwind_user,
NULL as log_observations,
NULL as log_actions,
NULL as log_pictures
FROM
event_recent e
LEFT OUTER JOIN event_type ON e.event_type_id=event_type.event_type_id
LEFT OUTER JOIN ips ON e.ips_id = ips.ips_id
WHERE
ips.ips_cluster_id=26 AND
e.start_datetime > DATE_SUB(UTC_TIMESTAMP(), INTERVAL 1 DAY)
UNION ALL
SELECT
e2.ips_id,
event_type.event_type_id,
event_type.event_type,
'EventEnd',
e2.end_datetime,
NULL,NULL,NULL,NULL,NULL,NULL
FROM
event_recent e2
LEFT OUTER JOIN event_type ON e2.event_type_id=event_type.event_type_id
LEFT OUTER JOIN ips ON e2.ips_id = ips.ips_id
WHERE
e2.end_datetime is NOT NULL AND
ips.ips_cluster_id=26 AND
e2.end_datetime > DATE_SUB(UTC_TIMESTAMP(), INTERVAL 1 DAY)
UNION ALL
SELECT
-1 as ips_id,
NULL,
NULL,
'Log',
log.datetime,
comment as log_comment,
decision.decision_nl as log_decision,
topwind_user.username as log_topwind_user,
IFNULL(GROUP_CONCAT(DISTINCT observation.observation_nl),'') as log_observations,
IFNULL(GROUP_CONCAT(DISTINCT action.action_nl),'') as log_actions,
IFNULL(GROUP_CONCAT(DISTINCT CONCAT(
picture.turbine_id,';',
picture.picture_datetime,';',
picture.filename
)),'') as log_pictures
FROM
log
LEFT OUTER JOIN decision ON log.decision_id = decision.decision_id
LEFT OUTER JOIN topwind_user ON log.topwind_user_id = topwind_user.topwind_user_id
LEFT OUTER JOIN log_observation ON log.log_id = log_observation.log_id
LEFT OUTER JOIN observation ON log_observation.observation_id = observation.observation_id
LEFT OUTER JOIN log_action ON log.log_id = log_action.log_id
LEFT OUTER JOIN action ON log_action.action_id = action.action_id
LEFT OUTER JOIN picture ON log.log_id = picture.log_id
WHERE log.ips_cluster_id=26 AND log.datetime>DATE_SUB(UTC_TIMESTAMP(), INTERVAL 1 DAY)
GROUP BY log.log_id
) i
LEFT OUTER JOIN `meteo_data_last_day` md ON md.ips_id = i.ips_id
LEFT OUTER JOIN `meteo_data_last_day` md_one_hour_ago ON md_one_hour_ago.ips_id = i.ips_id
WHERE
(
md.meteo_datetime = (
SELECT MAX(`meteo_data_last_day`.`meteo_datetime`)
FROM `meteo_data_last_day`
WHERE ips_id = i.ips_id AND `meteo_data_last_day`.`meteo_datetime`<i.ts
) OR
md.ips_id IS NULL
) AND
(
md_one_hour_ago.meteo_datetime = (
SELECT MAX(`meteo_data_last_day`.`meteo_datetime`)
FROM `meteo_data_last_day`
WHERE ips_id = i.ips_id AND
`meteo_data_last_day`.`meteo_datetime` < DATE_SUB(md.meteo_datetime, INTERVAL 1 HOUR)
) OR
md_one_hour_ago.ips_id IS NULL
)
ORDER BY i.ts
Connection ID (thread ID): 19138
Status: NOT_KILLEDOptimizer switch: index_merge=on,index_merge_union=on,index_merge_sort_union=on,index_merge_intersection=on,index_merge_sort_intersection=off,engine_condition_pushdown=off,index_condition_pushdown=on,derived_merge=on,derived_with_keys=on,firstmatch=on,loosescan=on,materialization=on,in_to_exists=on,semijoin=on,partial_match_rowid_merge=on,partial_match_table_scan=on,subquery_cache=on,mrr=off,mrr_cost_based=off,mrr_sort_keys=off,outer_join_with_cache=on,semijoin_with_cache=on,join_cache_incremental=on,join_cache_hashed=on,join_cache_bka=on,optimize_join_buffer_size=on,table_elimination=on,extended_keys=on,exists_to_in=on,orderby_uses_equalities=on,condition_pushdown_for_derived=on,split_materialized=on,condition_pushdown_for_subquery=on,rowid_filter=on,condition_pushdown_from_having=on,not_null_range_scan=off
The manual page at https://mariadb.com/kb/en/how-to-produce-a-full-stack-trace-for-mysqld/ contains
information that should help you find out what is causing the crash.
Writing a core file at D:\MariaDB\data\
Attachments
Issue Links
- duplicates
-
-
- Closed
-
- relates to
-
-
- Closed
-
-
-
- Closed
-
Activity
| Field | Original Value | New Value |
|---|---|---|
| Issue Type | Task [ 3 ] | Bug [ 1 ] |
10.6.1 is an alpha release. The first generally available release was 10.6.3. The latest release in the series is 10.6.5.
That said, this looks similar to MDEV-25163, which is claimed to affect 10.5.11. Because we have not repeated it internally, we cannot fix it yet.
wlad, can you please provide assistance for obtaining stack traces for the crash?
| Link |
This issue relates to |
| Component/s | Storage Engine - InnoDB [ 10129 ] | |
| Affects Version/s | 10.6.1 [ 24437 ] |
marko, the stack of the crashing thread is in the bug description, after "attempting backtrace", and looks ok. The actual mariadbd.dmp, or mysqld.dmp, is missing, so stacktraces of all threads are not currently available.
ruut, maybe you can find a file with .dmp extension in your D:\MariaDB\data\ , and attach it to the bug?
There is no mariadbd.dmp on my C: or D: drive (in fact I search for *.dmp without success). Can you give assistance on to make sure this file is created on future crashes.
I upgraded to 10.6.5-MariaDB - mariadb.org binary distribution, but same problems still occur.
Hmm, the core should be enabled on Windows by default (MDEV-18439), but something broke this.
Thanks for noticing.
Anyway, you can add core-file into mysqld section of the my.ini file, so it looks like below.
This option does not accept arguments (on some reason)
[mysqld]
|
core-file
|
wlad, thank you. Because this may be a race condition, I would need the stack traces of all threads. And even then, another thread that might have broken things in the crashing thread’s point of view might already be executing something completely different. Hopefully the .dmp file will contain the values of some variables and function parameters.
| Attachment | mysqld.dmp [ 60526 ] |
| Attachment | TW-EDE-SRV01.tail.err [ 60527 ] |
I attached the dump and also the relevant part from the .err file where the duped crashed happend. The service is now crashing several times per hour instead of several times a day. So the problem is getting worse.
| Attachment | all_threads_stack.txt [ 60528 ] |
| Attachment | windbg_unique_stacks.txt [ 60529 ] |
marko, I attached 2 text files , the VS and Windbg style. windbg has a little more info, exception context and some stack variables, on the crashing thread. Since it is a minidump, apart from what's on stack, there is not much, so windbg output probably contains maximum information you can get (note however, the stacks are unique, tell me, if you need to have all of them listed)
As far as I can tell, at the moment of crash, only one thread is active, and others are waiting on condition variable in lock_wait().
| Assignee | Marko Mäkelä [ marko ] |
wlad, thank you, the file all_threads_stack.txt
is a good start. But, is it possible to see the contents of lock.trx_locks for the transaction? I have understood that unlike in core dumps of Unix-like systems, .dmp files might not contain such information. Is there some way for ruut to attach a debugger to the server, and to extract more information at the moment of a crash? If the service is crashing several times per hour, such an approach should be feasible.
marko, You do not see memory on heap, because this kinds of minidump we create exclude heap.
Only stacks, and exception information is available.
In theory, everything is possible, there are multiple formats of minidumps, and the MinidumpWriteDump has all kinds of flags, and inclusion/exclusion callbacks, which we do not use, yet. Our minidump is uncustomizable "mini", not midi or maxi.
And of course, one can attach a debugger to a running process and debugger will break when process is about to crash, and then one can take a minidump, or full dump, or perhaps with some filtered memory, in case of windbg (https://docs.microsoft.com/en-us/windows-hardware/drivers/debugger/-dump--create-dump-file- , I think the ".dump /mi" command could be particularly useful, in this case , because it "adds secondary memory to the minidump. Secondary memory is any memory referenced by a pointer on the stack or backing store, plus a small region surrounding this address."
However, I believe the most convenient thing, for the user could be, if you print those locks with fprintfs in Innodb, prior to crash, and provide affected user with a better instrumented executable.
sorry guys, I really appreciate your help, I need this database to be operational again Monday morning 8.00 central European time, when the office opens up. So my plan is to reinstall mariadb 10.6.5, restore the database backups, which I expect to be all fine. Maybe the problems were caused by 10.6.1 beta which was installed on a production server for almost half a year (my fault, I did not notice it was a beta version) and I only upgraded to 10.6.5 yesterday. Could it be that 10.6.1 contains some bugs which resulted in database corruptions which are not detected by mysqlcheck, but still caused the database to crash even after upgrading to 10.6.5?
There is no data corruption in the database, the crash is presumably is some concurrency bug, which results in this assertion. Or the assertion itself is a bug, but marko would know better.
So when I would install Mariadb 10.5.13 and restore the databases somehow avoid this concurrency bug form happening again?
concerning concurrency:
We use a single mariadb user for access to 4 databases which will be used by:
- python script with SQLAlchemy library called from Windows scheduled tasks
- FastCGI to Host PHP Applications on IIS for 8 different websites with 8 application pools with mysqli driver.
The sever has 16 CPU cores and 40 GB Physical memory.
Would you advise to define a separate mariadb user per application pool and per python script. Or does this not matter?
ruut, one or many mariadb users, this does not matter for concurrency. Different users are used only for access control, and privileges, and that's it.
| Description |
Several times a day the MariaDB windows services crashes. Every time the same error in the log is shown. Please advise which steps to take to fix it. I am using version:
Server version: 10.6.1-MariaDB - mariadb.org binary distribution Error log: 2021-11-12 08:27:15 0x37d8 InnoDB: Assertion failure in file D:\winx64-packages\build\src\storage\innobase\trx\trx0trx.cc line 1288 InnoDB: Failing assertion: UT_LIST_GET_LEN(lock.trx_locks) == 0 InnoDB: We intentionally generate a memory trap. InnoDB: Submit a detailed bug report to https://jira.mariadb.org/ InnoDB: If you get repeated assertion failures or crashes, even InnoDB: immediately after the mysqld startup, there may be InnoDB: corruption in the InnoDB tablespace. Please refer to InnoDB: https://mariadb.com/kb/en/library/innodb-recovery-modes/ InnoDB: about forcing recovery. 211112 8:27:15 [ERROR] mysqld got exception 0x80000003 ; This could be because you hit a bug. It is also possible that this binary or one of the libraries it was linked against is corrupt, improperly built, or misconfigured. This error can also be caused by malfunctioning hardware. To report this bug, see https://mariadb.com/kb/en/reporting-bugs We will try our best to scrape up some info that will hopefully help diagnose the problem, but since we have already crashed, something is definitely wrong and this may fail. Server version: 10.6.1-MariaDB key_buffer_size=134217728 read_buffer_size=131072 max_used_connections=141 max_threads=65537 thread_count=120 It is possible that mysqld could use up to key_buffer_size + (read_buffer_size + sort_buffer_size)*max_threads = 139782 K bytes of memory Hope that's ok; if not, decrease some variables in the equation. Thread pointer: 0x27a7abc4038 Attempting backtrace. You can use the following information to find out where mysqld died. If you see no messages after this, something went terribly wrong... server.dll!my_parameter_handler()[my_init.c:278] ucrtbase.dll!raise() ucrtbase.dll!abort() server.dll!ut_dbg_assertion_failed()[ut0dbg.cc:60] server.dll!trx_t::commit_in_memory()[trx0trx.cc:1288] server.dll!trx_t::commit()[trx0trx.cc:1511] server.dll!trx_commit_for_mysql()[trx0trx.cc:1625] server.dll!innobase_commit()[ha_innodb.cc:4417] server.dll!commit_one_phase_2()[handler.cc:1999] server.dll!ha_commit_one_phase()[handler.cc:1980] server.dll!ha_commit_trans()[handler.cc:1772] server.dll!trans_commit_stmt()[transaction.cc:473] server.dll!mysql_execute_command()[sql_parse.cc:6047] server.dll!mysql_parse()[sql_parse.cc:8023] server.dll!dispatch_command()[sql_parse.cc:1899] server.dll!do_command()[sql_parse.cc:1406] server.dll!threadpool_process_request()[threadpool_common.cc:395] server.dll!tp_callback()[threadpool_common.cc:203] KERNEL32.DLL!LCMapStringEx() ntdll.dll!RtlAddRefActivationContext() ntdll.dll!RtlAcquireSRWLockExclusive() KERNEL32.DLL!BaseThreadInitThunk() ntdll.dll!RtlUserThreadStart() Trying to get some variables. Some pointers may be invalid and cause the dump to abort. Query (0x27a7a987720): SELECT i.ips_id, i.event_type_id, i.event_type, i.category, i.ts, i.log_comment, i.log_decision, i.log_topwind_user, i.log_observations, i.log_actions, i.log_pictures, md.meteo_datetime > DATE_SUB(i.ts, INTERVAL 5 MINUTE) as ShowSensor, md_one_hour_ago.meteo_datetime > DATE_SUB(md.meteo_datetime, INTERVAL 2 HOUR) as ShowSensorDiff, round(md.temperature,1) as Temp, sign(round(1/0.2* (md.temperature-md_one_hour_ago.temperature) /(TIMESTAMPDIFF(minute,md_one_hour_ago.meteo_datetime,md.meteo_datetime)/60) )) as Temp_Change_Sign, round( (md.temperature-md_one_hour_ago.temperature) /(TIMESTAMPDIFF(minute,md_one_hour_ago.meteo_datetime,md.meteo_datetime)/60), 1 ) as Temp_Change, round(md.relative_humidity) as Humidity, sign(round(1/3* (md.relative_humidity-md_one_hour_ago.relative_humidity) /(TIMESTAMPDIFF(minute,md_one_hour_ago.meteo_datetime,md.meteo_datetime)/60) )) as Humidity_Change_Sign, round( (md.relative_humidity-md_one_hour_ago.relative_humidity) /(TIMESTAMPDIFF(minute,md_one_hour_ago.meteo_datetime,md.meteo_datetime)/60), 0 ) as Humidity_Change, md.precipitation as Precip, sign( (md.precipitation-md_one_hour_ago.precipitation) ) as Precip_Change_Sign, round(md.risk_number,0) as Risk, sign(round(1/5* (md.risk_number-md_one_hour_ago.risk_number) /(TIMESTAMPDIFF(minute,md_one_hour_ago.meteo_datetime,md.meteo_datetime)/60) )) as Risk_Change_Sign, round( (md.risk_number-md_one_hour_ago.risk_number) /(TIMESTAMPDIFF(minute,md_one_hour_ago.meteo_datetime,md.meteo_datetime)/60) ) as Risk_Change FROM ( SELECT e.ips_id, event_type.event_type_id, event_type.event_type, 'EventStart' as category, e.start_datetime as ts, NULL as log_comment, NULL as log_decision, NULL as log_topwind_user, NULL as log_observations, NULL as log_actions, NULL as log_pictures FROM event_recent e LEFT OUTER JOIN event_type ON e.event_type_id=event_type.event_type_id LEFT OUTER JOIN ips ON e.ips_id = ips.ips_id WHERE ips.ips_cluster_id=26 AND e.start_datetime > DATE_SUB(UTC_TIMESTAMP(), INTERVAL 1 DAY) UNION ALL SELECT e2.ips_id, event_type.event_type_id, event_type.event_type, 'EventEnd', e2.end_datetime, NULL,NULL,NULL,NULL,NULL,NULL FROM event_recent e2 LEFT OUTER JOIN event_type ON e2.event_type_id=event_type.event_type_id LEFT OUTER JOIN ips ON e2.ips_id = ips.ips_id WHERE e2.end_datetime is NOT NULL AND ips.ips_cluster_id=26 AND e2.end_datetime > DATE_SUB(UTC_TIMESTAMP(), INTERVAL 1 DAY) UNION ALL SELECT -1 as ips_id, NULL, NULL, 'Log', log.datetime, comment as log_comment, decision.decision_nl as log_decision, topwind_user.username as log_topwind_user, IFNULL(GROUP_CONCAT(DISTINCT observation.observation_nl),'') as log_observations, IFNULL(GROUP_CONCAT(DISTINCT action.action_nl),'') as log_actions, IFNULL(GROUP_CONCAT(DISTINCT CONCAT( picture.turbine_id,';', picture.picture_datetime,';', picture.filename )),'') as log_pictures FROM log LEFT OUTER JOIN decision ON log.decision_id = decision.decision_id LEFT OUTER JOIN topwind_user ON log.topwind_user_id = topwind_user.topwind_user_id LEFT OUTER JOIN log_observation ON log.log_id = log_observation.log_id LEFT OUTER JOIN observation ON log_observation.observation_id = observation.observation_id LEFT OUTER JOIN log_action ON log.log_id = log_action.log_id LEFT OUTER JOIN action ON log_action.action_id = action.action_id LEFT OUTER JOIN picture ON log.log_id = picture.log_id WHERE log.ips_cluster_id=26 AND log.datetime>DATE_SUB(UTC_TIMESTAMP(), INTERVAL 1 DAY) GROUP BY log.log_id ) i LEFT OUTER JOIN `meteo_data_last_day` md ON md.ips_id = i.ips_id LEFT OUTER JOIN `meteo_data_last_day` md_one_hour_ago ON md_one_hour_ago.ips_id = i.ips_id WHERE ( md.meteo_datetime = ( SELECT MAX(`meteo_data_last_day`.`meteo_datetime`) FROM `meteo_data_last_day` WHERE ips_id = i.ips_id AND `meteo_data_last_day`.`meteo_datetime`<i.ts ) OR md.ips_id IS NULL ) AND ( md_one_hour_ago.meteo_datetime = ( SELECT MAX(`meteo_data_last_day`.`meteo_datetime`) FROM `meteo_data_last_day` WHERE ips_id = i.ips_id AND `meteo_data_last_day`.`meteo_datetime` < DATE_SUB(md.meteo_datetime, INTERVAL 1 HOUR) ) OR md_one_hour_ago.ips_id IS NULL ) ORDER BY i.ts Connection ID (thread ID): 19138 Status: NOT_KILLED Optimizer switch: index_merge=on,index_merge_union=on,index_merge_sort_union=on,index_merge_intersection=on,index_merge_sort_intersection=off,engine_condition_pushdown=off,index_condition_pushdown=on,derived_merge=on,derived_with_keys=on,firstmatch=on,loosescan=on,materialization=on,in_to_exists=on,semijoin=on,partial_match_rowid_merge=on,partial_match_table_scan=on,subquery_cache=on,mrr=off,mrr_cost_based=off,mrr_sort_keys=off,outer_join_with_cache=on,semijoin_with_cache=on,join_cache_incremental=on,join_cache_hashed=on,join_cache_bka=on,optimize_join_buffer_size=on,table_elimination=on,extended_keys=on,exists_to_in=on,orderby_uses_equalities=on,condition_pushdown_for_derived=on,split_materialized=on,condition_pushdown_for_subquery=on,rowid_filter=on,condition_pushdown_from_having=on,not_null_range_scan=off The manual page at https://mariadb.com/kb/en/how-to-produce-a-full-stack-trace-for-mysqld/ contains information that should help you find out what is causing the crash. Writing a core file at D:\MariaDB\data\ |
Several times a day the MariaDB windows services crashes. Every time the same error in the log is shown. Please advise which steps to take to fix it. I am using version:
Server version: 10.6.1-MariaDB - mariadb.org binary distribution Error log: {quote}2021-11-12 08:27:15 0x37d8 InnoDB: Assertion failure in file D:\winx64-packages\build\src\storage\innobase\trx\trx0trx.cc line 1288 InnoDB: Failing assertion: UT_LIST_GET_LEN(lock.trx_locks) == 0 InnoDB: We intentionally generate a memory trap. InnoDB: Submit a detailed bug report to https://jira.mariadb.org/ InnoDB: If you get repeated assertion failures or crashes, even InnoDB: immediately after the mysqld startup, there may be InnoDB: corruption in the InnoDB tablespace. Please refer to InnoDB: https://mariadb.com/kb/en/library/innodb-recovery-modes/ InnoDB: about forcing recovery. 211112 8:27:15 [ERROR] mysqld got exception 0x80000003 ; This could be because you hit a bug. It is also possible that this binary or one of the libraries it was linked against is corrupt, improperly built, or misconfigured. This error can also be caused by malfunctioning hardware. To report this bug, see https://mariadb.com/kb/en/reporting-bugs We will try our best to scrape up some info that will hopefully help diagnose the problem, but since we have already crashed, something is definitely wrong and this may fail. Server version: 10.6.1-MariaDB key_buffer_size=134217728 read_buffer_size=131072 max_used_connections=141 max_threads=65537 thread_count=120 It is possible that mysqld could use up to key_buffer_size + (read_buffer_size + sort_buffer_size)*max_threads = 139782 K bytes of memory Hope that's ok; if not, decrease some variables in the equation. Thread pointer: 0x27a7abc4038 Attempting backtrace. You can use the following information to find out where mysqld died. If you see no messages after this, something went terribly wrong... server.dll!my_parameter_handler()[my_init.c:278] ucrtbase.dll!raise() ucrtbase.dll!abort() server.dll!ut_dbg_assertion_failed()[ut0dbg.cc:60] server.dll!trx_t::commit_in_memory()[trx0trx.cc:1288] server.dll!trx_t::commit()[trx0trx.cc:1511] server.dll!trx_commit_for_mysql()[trx0trx.cc:1625] server.dll!innobase_commit()[ha_innodb.cc:4417] server.dll!commit_one_phase_2()[handler.cc:1999] server.dll!ha_commit_one_phase()[handler.cc:1980] server.dll!ha_commit_trans()[handler.cc:1772] server.dll!trans_commit_stmt()[transaction.cc:473] server.dll!mysql_execute_command()[sql_parse.cc:6047] server.dll!mysql_parse()[sql_parse.cc:8023] server.dll!dispatch_command()[sql_parse.cc:1899] server.dll!do_command()[sql_parse.cc:1406] server.dll!threadpool_process_request()[threadpool_common.cc:395] server.dll!tp_callback()[threadpool_common.cc:203] KERNEL32.DLL!LCMapStringEx() ntdll.dll!RtlAddRefActivationContext() ntdll.dll!RtlAcquireSRWLockExclusive() KERNEL32.DLL!BaseThreadInitThunk() ntdll.dll!RtlUserThreadStart() Trying to get some variables. Some pointers may be invalid and cause the dump to abort. Query (0x27a7a987720): SELECT i.ips_id, i.event_type_id, i.event_type, i.category, i.ts, i.log_comment, i.log_decision, i.log_topwind_user, i.log_observations, i.log_actions, i.log_pictures, md.meteo_datetime > DATE_SUB(i.ts, INTERVAL 5 MINUTE) as ShowSensor, md_one_hour_ago.meteo_datetime > DATE_SUB(md.meteo_datetime, INTERVAL 2 HOUR) as ShowSensorDiff, round(md.temperature,1) as Temp, sign(round(1/0.2* (md.temperature-md_one_hour_ago.temperature) /(TIMESTAMPDIFF(minute,md_one_hour_ago.meteo_datetime,md.meteo_datetime)/60) )) as Temp_Change_Sign, round( (md.temperature-md_one_hour_ago.temperature) /(TIMESTAMPDIFF(minute,md_one_hour_ago.meteo_datetime,md.meteo_datetime)/60), 1 ) as Temp_Change, round(md.relative_humidity) as Humidity, sign(round(1/3* (md.relative_humidity-md_one_hour_ago.relative_humidity) /(TIMESTAMPDIFF(minute,md_one_hour_ago.meteo_datetime,md.meteo_datetime)/60) )) as Humidity_Change_Sign, round( (md.relative_humidity-md_one_hour_ago.relative_humidity) /(TIMESTAMPDIFF(minute,md_one_hour_ago.meteo_datetime,md.meteo_datetime)/60), 0 ) as Humidity_Change, md.precipitation as Precip, sign( (md.precipitation-md_one_hour_ago.precipitation) ) as Precip_Change_Sign, round(md.risk_number,0) as Risk, sign(round(1/5* (md.risk_number-md_one_hour_ago.risk_number) /(TIMESTAMPDIFF(minute,md_one_hour_ago.meteo_datetime,md.meteo_datetime)/60) )) as Risk_Change_Sign, round( (md.risk_number-md_one_hour_ago.risk_number) /(TIMESTAMPDIFF(minute,md_one_hour_ago.meteo_datetime,md.meteo_datetime)/60) ) as Risk_Change FROM ( SELECT e.ips_id, event_type.event_type_id, event_type.event_type, 'EventStart' as category, e.start_datetime as ts, NULL as log_comment, NULL as log_decision, NULL as log_topwind_user, NULL as log_observations, NULL as log_actions, NULL as log_pictures FROM event_recent e LEFT OUTER JOIN event_type ON e.event_type_id=event_type.event_type_id LEFT OUTER JOIN ips ON e.ips_id = ips.ips_id WHERE ips.ips_cluster_id=26 AND e.start_datetime > DATE_SUB(UTC_TIMESTAMP(), INTERVAL 1 DAY) UNION ALL SELECT e2.ips_id, event_type.event_type_id, event_type.event_type, 'EventEnd', e2.end_datetime, NULL,NULL,NULL,NULL,NULL,NULL FROM event_recent e2 LEFT OUTER JOIN event_type ON e2.event_type_id=event_type.event_type_id LEFT OUTER JOIN ips ON e2.ips_id = ips.ips_id WHERE e2.end_datetime is NOT NULL AND ips.ips_cluster_id=26 AND e2.end_datetime > DATE_SUB(UTC_TIMESTAMP(), INTERVAL 1 DAY) UNION ALL SELECT -1 as ips_id, NULL, NULL, 'Log', log.datetime, comment as log_comment, decision.decision_nl as log_decision, topwind_user.username as log_topwind_user, IFNULL(GROUP_CONCAT(DISTINCT observation.observation_nl),'') as log_observations, IFNULL(GROUP_CONCAT(DISTINCT action.action_nl),'') as log_actions, IFNULL(GROUP_CONCAT(DISTINCT CONCAT( picture.turbine_id,';', picture.picture_datetime,';', picture.filename )),'') as log_pictures FROM log LEFT OUTER JOIN decision ON log.decision_id = decision.decision_id LEFT OUTER JOIN topwind_user ON log.topwind_user_id = topwind_user.topwind_user_id LEFT OUTER JOIN log_observation ON log.log_id = log_observation.log_id LEFT OUTER JOIN observation ON log_observation.observation_id = observation.observation_id LEFT OUTER JOIN log_action ON log.log_id = log_action.log_id LEFT OUTER JOIN action ON log_action.action_id = action.action_id LEFT OUTER JOIN picture ON log.log_id = picture.log_id WHERE log.ips_cluster_id=26 AND log.datetime>DATE_SUB(UTC_TIMESTAMP(), INTERVAL 1 DAY) GROUP BY log.log_id ) i LEFT OUTER JOIN `meteo_data_last_day` md ON md.ips_id = i.ips_id LEFT OUTER JOIN `meteo_data_last_day` md_one_hour_ago ON md_one_hour_ago.ips_id = i.ips_id WHERE ( md.meteo_datetime = ( SELECT MAX(`meteo_data_last_day`.`meteo_datetime`) FROM `meteo_data_last_day` WHERE ips_id = i.ips_id AND `meteo_data_last_day`.`meteo_datetime`<i.ts ) OR md.ips_id IS NULL ) AND ( md_one_hour_ago.meteo_datetime = ( SELECT MAX(`meteo_data_last_day`.`meteo_datetime`) FROM `meteo_data_last_day` WHERE ips_id = i.ips_id AND `meteo_data_last_day`.`meteo_datetime` < DATE_SUB(md.meteo_datetime, INTERVAL 1 HOUR) ) OR md_one_hour_ago.ips_id IS NULL ) ORDER BY i.ts Connection ID (thread ID): 19138 Status: NOT_KILLED Optimizer switch: index_merge=on,index_merge_union=on,index_merge_sort_union=on,index_merge_intersection=on,index_merge_sort_intersection=off,engine_condition_pushdown=off,index_condition_pushdown=on,derived_merge=on,derived_with_keys=on,firstmatch=on,loosescan=on,materialization=on,in_to_exists=on,semijoin=on,partial_match_rowid_merge=on,partial_match_table_scan=on,subquery_cache=on,mrr=off,mrr_cost_based=off,mrr_sort_keys=off,outer_join_with_cache=on,semijoin_with_cache=on,join_cache_incremental=on,join_cache_hashed=on,join_cache_bka=on,optimize_join_buffer_size=on,table_elimination=on,extended_keys=on,exists_to_in=on,orderby_uses_equalities=on,condition_pushdown_for_derived=on,split_materialized=on,condition_pushdown_for_subquery=on,rowid_filter=on,condition_pushdown_from_having=on,not_null_range_scan=off The manual page at https://mariadb.com/kb/en/how-to-produce-a-full-stack-trace-for-mysqld/ contains information that should help you find out what is causing the crash. Writing a core file at D:\MariaDB\data\ {quote} |
The lock.trx_locks would be allocated from the heap, via trx_pools, and therefore it would be excluded from those dumps.
It would be very interesting to know which thread created the offending lock(s). Is it the crashing thread itself, or were the lock(s) created by an implicit-to-explicit record lock conversion by another thread?
ruut, are those 16 CPU cores in a single CPU package?
We conduct most of our internal stress tests on GNU/Linux using debug-instrumented executables. The repeatability of race condition bugs sometimes become reproducible with subtle changes of timing. Compared to the Linux kernel, the scheduler in Microsoft Windows may have different timing patterns.

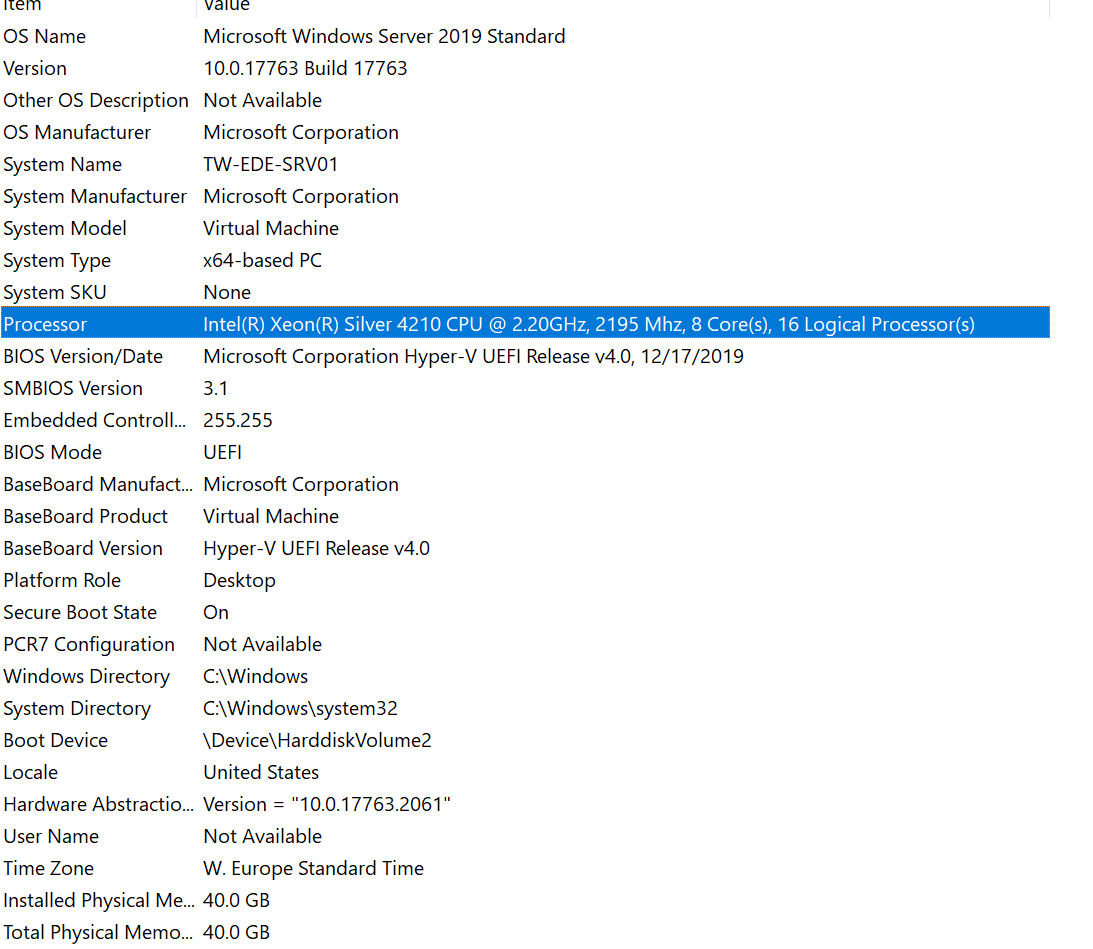

| Attachment | 2021-11-15 13_05_52-.png [ 60540 ] |
I downgraded to 10.5.13. Same assertion error occurs as before, so unfortunately this did not solve the problem. I attached the my.ini file, which might help you find the root cause of the problem. my.ini
@marko, this server has 8 cores and 16 logical processiors, see attached screenshot.
wlad noticed the non-default setting innodb_rollback_on_timeout=ON in your configuration. It is possible be that our test coverage of that setting is insufficient. ruut, would the crashes go away if you removed that?
| Affects Version/s | 10.6.5 [ 26034 ] | |
| Affects Version/s | 10.5.13 [ 26026 ] |
We can repeat various assertion failures when enabling innodb_rollback_on_timeout=ON in a debug build.
| Attachment | 2021.11.22-tail-error-log.txt [ 60892 ] |
@Marko Mäkelä, I removed the innodb_rollback_on_timeout settings and crashes now only happens once per week. Attached the error which now occurs once per week. To me it looks the same as the error which we received before, but maybe you see subtle differences 2021.11.22-tail-error-log.txt
I think that for analyzing this bug, I will need an https://rr-project.org trace from mleich. Stack traces from a crash are not going to tell us how we got to that situation.
| Labels | need_rr |
| Workflow | MariaDB v3 [ 127393 ] | MariaDB v4 [ 143340 ] |
| Fix Version/s | 10.5 [ 23123 ] | |
| Fix Version/s | 10.6 [ 24028 ] |
I enabled deadlock logging and found out that around 1000 deadlocks per day occurred. Fixing the deadlock issues also solved this problem. Mariadb service has not crashed in the last 30 days. Maybe next time assertion error occurres, ask reporter to enable deadlock logging
| Labels | need_rr | rr-profile |
mleich, on 2022-06-23 you had set the label rr-profile but forgot to specify the location of the trace. I searched for it, but didn’t find a mention of it in any chat logs either.
| Labels | rr-profile | need_rr |
Sorry, setting "rr-profile" and forgetting the location was a mistake.
The cases which I found were crashes during shutdown like
- 2022-07-26T09:15:22 [256926] | [rr 260977 1461454]2022-07-26 9:14:32 0 [Note] InnoDB: Starting shutdown...
- 2022-07-26T09:15:22 [256926] | [rr 260977 1461529]2022-07-26 9:14:32 0 [Note] InnoDB: Dumping buffer pool(s) to /dev/shm/rqg/1658847117/108/1/data/ib_buffer_pool
- 2022-07-26T09:15:22 [256926] | [rr 260977 1461564]2022-07-26 9:14:32 0 [Note] InnoDB: Instance 0, restricted to 94 pages due to innodb_buf_pool_dump_pct=25
- 2022-07-26T09:15:22 [256926] | [rr 260977 1461572]2022-07-26 9:14:32 0 [Note] InnoDB: Buffer pool(s) dump completed at 220726 9:14:32
- 2022-07-26T09:15:22 [256926] | [rr 260977 1461683]2022-07-26 09:14:33 0x7f21f6013700[rr 260977 1461686] InnoDB: Assertion failure in file /data/Server/10.4/storage/innobase/buf/buf0flu.cc line 3321
- 2022-07-26T09:15:22 [256926] | [rr 260977 1461688]InnoDB: Failing assertion: UT_LIST_GET_LEN(buf_pool->flush_list) == 0
origin/10.4 9a897335eb4387980aed7698b832a893dbaa3d81 2022-07-26T16:45:10+03:00
sdp:/data/results/1658847117/TBR-1163-MDEV-27031_1/dev/shm/rqg/1658847117/108/1/rr
But some "rr replay" does not replay the assert observed from whatever reason.
mleich, that assertion expression is different from the bug description. There are many data structures that use the InnoDB home-brew doubly linked list.
That said, in MDEV-29440 you posted an rr replay trace that might explain this bug.
Copying and adapting from MDEV-29440:
ssh pluto
|
rr replay /data/results/1662464247/TBR-1442-TBR-1443/1/rr/latest-trace
|
That trace involves innodb_rollback_on_timeout=ON.
| Fix Version/s | 10.7 [ 24805 ] | |
| Fix Version/s | 10.8 [ 26121 ] | |
| Fix Version/s | 10.9 [ 26905 ] | |
| Fix Version/s | 10.10 [ 27530 ] | |
| Assignee | Marko Mäkelä [ marko ] | Vladislav Lesin [ vlad.lesin ] |
| Labels | need_rr | rr-profile |
| Priority | Major [ 3 ] | Critical [ 2 ] |
| Link |
This issue relates to |
In MDEV-29576 there is an rr replay trace where a being-rolled-back transaction will be flagged as a deadlock victim. Like the original report of this, it involves innodb_rollback_on_timeout=ON.
| Fix Version/s | 10.7 [ 24805 ] |
| Status | Open [ 1 ] | In Progress [ 3 ] |
The scenario is the following:
1. trx1 is resumed in lock_wait() by timeout, enters in lock_sys_t::cancel(lock=L1), but it has not yet acquired lock_sys.latch,
2. trx2 executes lock_move_reorganize_page() during purging. It acquires lock_sys.latch, moves L1 to L2, resetting waiting flag for L1, sets trx1->lock.wait_lock=L2 and releases lock_sys.latch.
3. trx1 acquires lock_sys.latch, and checks lock->is_waiting(). "lock" is equal to L1, as this is argument of lock_sys_t::cancel(lock=L1) . As L1's waiting flag was reset by trx2, trx1 does not invoke lock_cancel_waiting_and_release(), and trx->lock.wait_thr stays unreset, what causes assertion failure on trx1 rollback.
This is one more variant of MDEV-27701, which is already fixed.
| Fix Version/s | N/A [ 14700 ] | |
| Fix Version/s | 10.5 [ 23123 ] | |
| Fix Version/s | 10.6 [ 24028 ] | |
| Fix Version/s | 10.8 [ 26121 ] | |
| Fix Version/s | 10.9 [ 26905 ] | |
| Fix Version/s | 10.10 [ 27530 ] | |
| Resolution | Duplicate [ 3 ] | |
| Status | In Progress [ 3 ] | Closed [ 6 ] |
| Link |
This issue duplicates |
| Labels | rr-profile | rr-profile-analysed |
| Link |
This issue relates to |
| Link |
This issue relates to |
| Labels | rr-profile-analysed | rr-profile-analyzed |
I ran mysqlcheck -A from the command line and all the tables are OK.
