Details
-
Bug
-
Status: Closed (View Workflow)
-
Major
-
Resolution: Fixed
-
None
-
None
-
MXS-SPRINT-277, MXS-SPRINT-278
-
Unexpected results
-
Earlier every column returned by the Exasol Router was types as VARCHAR. Consequently, clients, e.g. DBeaver, that pay attention to and needs that information could not display the data correctly. Now, ODBC types are mapped to their MariaDB equivalent.
Description
In the exasolrouter's result-set column metadata. Every column comes back declared as MYSQL_TYPE_VARCHAR with charset 63 (binary):
python mariadb connector: ('id', 15, 63, 255, 0, 0, False, 129) # type 15, charset 63 = binary
JDBC (same driver DBeaver uses):
col id type=-3(VARBINARY) class=byte[]
col name type=-3(VARBINARY) class=byte[]
col code type=-3(VARBINARY) class=byte[]
col created_at type=-3(VARBINARY) class=byte[]
Meanwhile information_schema.COLUMNS (the repo view, working correctly) tells DBeaver the truth:
id 1 decimal decimal(10,0)
name 2 varchar varchar(400)
code 3 varchar varchar(40)
created_at 4 timestamp timestamp(0)

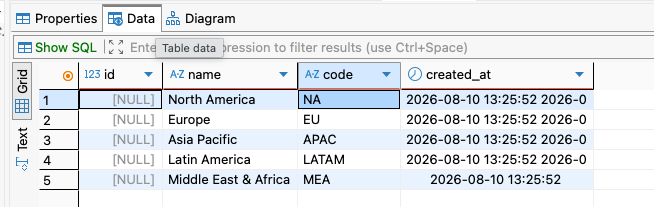

So DBeaver picks a numeric value handler for id from the catalog metadata, then the JDBC result set hands it a byte[] — no conversion, cell renders [NULL]. The string columns survive because
DBeaver's string handler happily decodes byte[]. The data itself is fine on the wire (getBigDecimal(1) returns 1..5 correctly), which is why it looks like a display-only bug.
Fix: the router must emit a real column-definition packet per column — map the Exasol type to the MySQL type code (DECIMAL/LONGLONG/VAR_STRING/TIMESTAMP) and use the connection's charset, not 63,
for non-binary columns. That code is in MaxScale's exasolrouter C++; it isn't in /r 1 new message (ctrl+End) ↓ can fix it.
you can test dbeaver to our mariadb-exa-demo using docker
replace ./mounts/maxscale/sqlglot.custom.udf with mariadb_preprocessor-b34a65b.sql
replace ./sql/mariadb-compat.sql with mariadb-compat-b34a65b.sql
to test the possible changes for sqlgui compatibility
Attachments
Issue Links
- relates to
-
MXS-7570 Generate correct column-definition packets in GridGain router
-
- In Progress
-
