[#MXS-3350] monitor server's state not change

Comment by Johan Wikman [ 2020-12-22 ]

Please provide your config.

Comment by Wilson Lau [ 2020-12-22 ]

servers.cnf:

    [node1]

    type=server

    address=galera-0.galera-headless.galera

    port=3306

    protocol=MariaDBBackend

    [binlog1]

    type=server

    address=binlog-0.binlog-headless.maxscale

    port=3306

    protocol=MariaDBBackend

    rank=secondary

    [slave1]

    type=server

    address=mariadb-0.mariadb-headless.mariadb-x

    port=3306

    protocol=MariaDBBackend

    [slave2]

    type=server

    address=mariadb-1.mariadb-headless.mariadb-x

    port=3306

    protocol=MariaDBBackend

monitors.cnf:

    [galera]

    type=monitor

    module=galeramon

    servers=node1

    user=smartms

    password=**

    monitor_interval=2000

    disable_master_failback=1

    script=/var/opt/maxscale/monitor.sh --event=$EVENT --master_list=$MASTERLIST --synced_list=$SYNCEDLIST

    [slave]

    type=monitor

    module=mariadbmon

    servers=slave1,slave2,binlog1

    user=smartms

    password=*****

    enforce_read_only_slaves=true

    script=/var/opt/maxscale/monitor.sh --event=$EVENT --master_list=$MASTERLIST --slave_list=$SLAVELIST

services.cnf:

    [rw-service]

    type=service

    router=readwritesplit

    servers=node1,slave1,slave2

    user=smartms

    password=***

    use_sql_variables_in=master

    connection_keepalive=20

    master_accept_reads=false

    max_sescmd_history=1000

    transaction_replay_retry_on_deadlock=true

    [rw-listener]

    type=listener

    service=rw-service

    protocol=MariaDBClient

    port=4006

    [w-service]

    type=service

    router=readconnroute

    cluster=galera

    user=smartms

    password=***

    router_options=master

    [w-listener]

    type=listener

    service=w-service

    protocol=MariaDBClient

    port=4007

    [r-service]

    type=service

    router=readconnroute

    servers=slave1,slave2,node1

    user=smartms

    password=***

    router_options=slave

    [r-listener]

    type=listener

    service=r-service

    protocol=MariaDBClient

    port=4008

Comment by Wilson Lau [ 2020-12-22 ]

pls help to review, thanks

Comment by Johan Wikman [ 2020-12-22 ]

What is the expected outcome? Where are those servers marked as slaves replicating from?

Comment by Wilson Lau [ 2020-12-22 ]

slave replicating from binlogserver, binlogserver replicating from master,

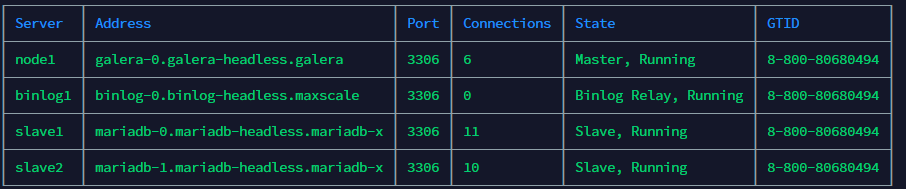

each show slave stauts is right , but maxscale's monitor unable to display its state

expected outcome is:

slave server's state should be slave, not running

Comment by markus makela [ 2021-08-02 ]

Comment by markus makela [ 2021-08-25 ]

wilsonlau any updates?

Comment by Wilson Lau [ 2021-08-26 ]

[monitor]
type=monitor
module=mariadbmon
servers=node1,binlog1,slave1,slave2
user=xxxx
password=xxxx

only use one monitor , set all servers together, then state is right !

Comment by markus makela [ 2021-08-26 ]

So the problem is fixed?

Comment by markus makela [ 2021-09-02 ]

Since this seems to be resolved, I'll close this as Not a Bug.

[MXS-3350] monitor server's state not change Created: 2020-12-22 Updated: 2021-09-02 Resolved: 2021-09-02
Status:	Closed
Project:	MariaDB MaxScale
Component/s:	binlogrouter
Affects Version/s:	2.5.6
Fix Version/s:	N/A
