What are your config options my_print_defaults --mysqld?

Daniel Black ,my config options as follows:

C:\Server\mysql\bin>my_print_defaults.exe --defaults-file=.\..\etc\my.ini mysqld
--secure_file_priv=..\mysql
--port=3307
--pid-file=Storage.pid
--basedir=..
--datadir=..\data
--tmpdir=..\tmp
--slave_load_tmpdir=..\tmp
--character-set-server=utf8
--sql-mode=NO_AUTO_CREATE_USER,NO_ENGINE_SUBSTITUTION
--table_open_cache=10240
--back_log=500
--max_connections=1000
--max_connect_errors=10000
--thread_cache_size=100
--thread_stack=192K
--sysdate-is-now=1
--ft_min_word_len=4
--lower_case_table_names=1
--max_allowed_packet=16M
--max_heap_table_size=64M
--max_length_for_sort_data=8M
--net_buffer_length=65536
--join_buffer_size=8M
--sort_buffer_size=16M
--binlog_cache_size=4M
--query_cache_type=0
--query_cache_size=0
--tmp_table_size=64M
--slave_net_timeout=30
--event_scheduler=ON
--skip-name-resolve=ON
--skip-external-locking=ON
--skip-slave-start=ON
--skip_symbolic_links=ON
--secure_auth=ON
--log-warnings=2
--skip-grant-tables=OFF
--allow-suspicious-udfs=OFF
--local_infile=OFF
--log-bin=Storage
--binlog-format=mixed
--max-binlog-size=512M
--expire-logs-days=7
--log-error=Storage
--server-id=1
--sync_binlog=1000
--slave_skip_errors=1517
--default-storage-engine=InnoDB
--innodb_file_per_table=1
--transaction_isolation=REPEATABLE-READ
--innodb_strict_mode=1
--innodb_buffer_pool_size=2048M
--innodb_data_file_path=ibdata1:200M:autoextend
--innodb_open_files=1000
--innodb_write_io_threads=32
--innodb_read_io_threads=32
--innodb_thread_concurrency=0
--innodb_io_capacity=8000
--innodb_flush_log_at_trx_commit=2
--innodb_log_buffer_size=16M
--innodb_log_file_size=100M
--innodb_adaptive_flushing=1
--innodb_max_dirty_pages_pct=60
--innodb_lock_wait_timeout=15
--innodb_fast_shutdown=0
--innodb_rollback_on_timeout=ON
--innodb_old_blocks_time=1000
--interactive_timeout=28800
--wait_timeout=28800
--innodb_lru_scan_depth=8096
--log_bin_trust_function_creators=1
--innodb-buffer-pool-load-at-startup=0
--innodb-buffer-pool-load-now=0
--innodb-buffer-pool-dump-at-shutdown=0
--innodb-buffer-pool-load-abort=1
--innodb-buffer-pool-instances=2
--innodb-page-cleaners=16
--innodb-purge-threads=8
--innodb-checksum-algorithm=CRC32
--optimizer_switch=index_merge=off

kennyliao, it would be good to get a stacktrace corresponding to one of the mentioned events in the procmon.
You can get it e.g with right click on the ReadFile event, chose "Stack". You might also need to configure symbols (Menu Options/Configure Symbols, add C:\Server\mysql\bin to ' Symbol Path')

Otherwise my guess is that this very slow shutdown comes from non-default "innodb-fast-shutdown=0" in your options, and by long time spent merging change buffer. I noticed buffer pool is tiny by todays standards, and this can influence that.

If this is the case, maybe one thing Innodb does wrong is being silent for a very long time during shutdown. marko, what do you think? Maybe it can tell "merging change buffer" at least?

There used to be an innodb_fast_shutdown=0 shutdown hang when the change buffer is corrupted. It was supposed to be fixed by MDEV-30009, already in 10.5.19. We’d need stack traces to diagnose the cause of this hang.

I understood it is "doing something", from kennyliao description, so maybe it is not a hang. Whether slow shutdown can take 24+ hours, I do not know, never seen, but if it is that slow, it is worth an Innodb-side announcement. Do not know if "FTS optimize thread exiting" could take all this time

I tried to kill the mysqld process later, but the mysqld.exe started and then stopped, but it still couldn't stop

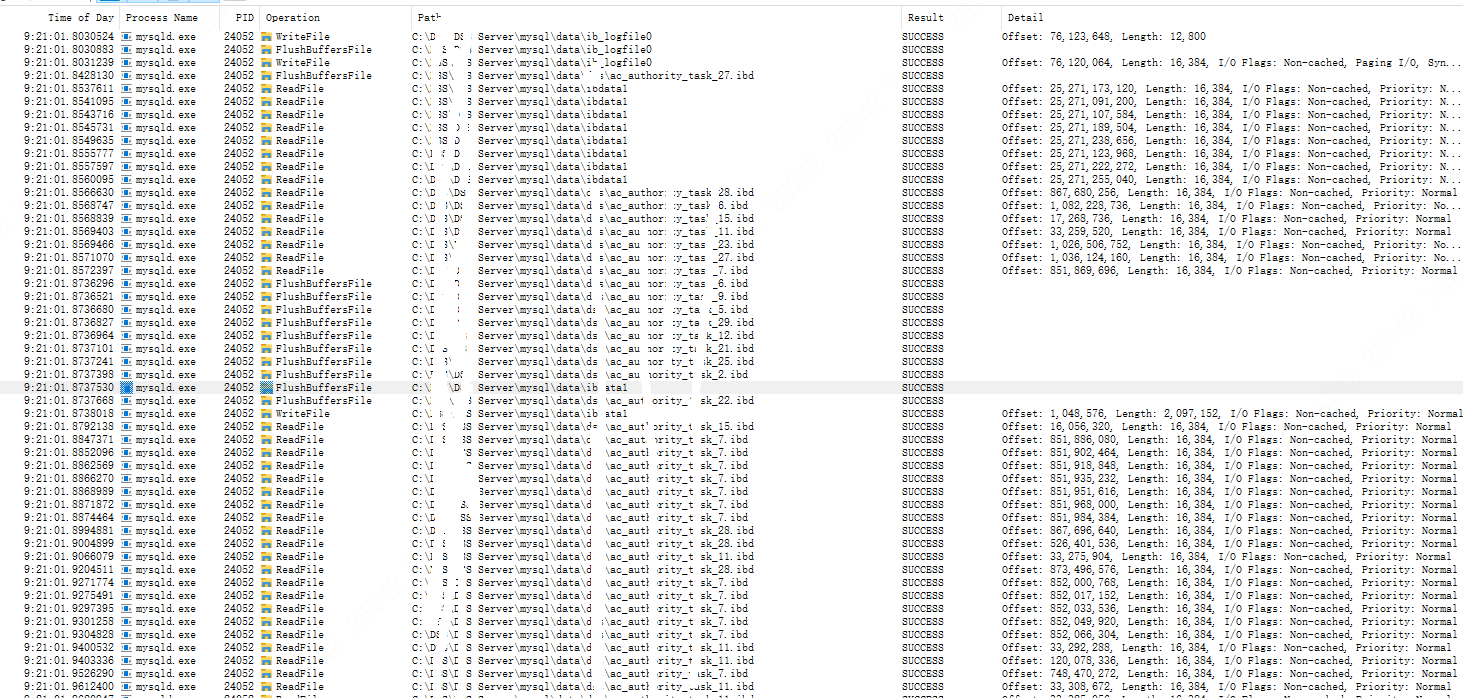

We really need some stack traces. The file accesses mentioned in ProcessMonitor.png could be either due to change buffer merge or due to purging the history of committed transactions. If innodb_undo_tablespaces were used, then the purge of history should not access the system tablespace, but the change buffer merge would.

There already was a bug fix related to this:
MDEV-22577 innodb_fast_shutdown=0 fails to report progress

Specific to 10.6 (not sure if it could affect 10.5), while debugging MDEV-32050 I noticed that there would be only one message at the start of slow shutdown, mentioning the number of rows of history that needs to be purged. After my test workload, purging the history would take 30 to 90 seconds.

We still need some stack traces to understand what exactly is going on here.

For the record, with the bench.sh inside adaptive_purge.tar.gz of MDEV-26356, I got a slow shutdown like this:

Version: '10.6.16-MariaDB'  socket: '/mnt/sbtest/mysqld.sock'  port: 3306  Source distribution

2023-09-27 17:06:47 0 [Note] /dev/shm/10.6g/sql/mariadbd (initiated by: root[root] @ localhost []): Normal shutdown

2023-09-27 17:06:47 0 [Note] InnoDB: FTS optimize thread exiting.

2023-09-27 17:06:47 0 [Note] InnoDB: to purge 26366271 transactions

2023-09-27 17:12:19 0 [Note] InnoDB: Starting shutdown...

2023-09-27 17:12:19 0 [Note] InnoDB: Dumping buffer pool(s) to /mnt/sbtest/ib_buffer_pool

2023-09-27 17:12:19 0 [Note] InnoDB: Buffer pool(s) dump completed at 230927 17:12:19

2023-09-27 17:12:19 0 [Note] InnoDB: Removed temporary tablespace data file: "./ibtmp1"

2023-09-27 17:12:19 0 [Note] InnoDB: Shutdown completed; log sequence number 73559731602; transaction id 173642215

2023-09-27 17:12:19 0 [Note] /dev/shm/10.6g/sql/mariadbd: Shutdown complete

This was with 12GiB of data in a 40GiB buffer pool but a tiny redo log compared to the workload (innodb_log_file_size=10g). As you can see, there was a message about the purge, but no further progress report for almost 6 minutes.

This reported case could also be due to a change buffer merge. At least here we always get a message about the purge of history.

The missing "to purge" messages should be a 10.6+ only problem. As far as I can tell, that was caused by the merge of MDEV-31382 from 10.5 to 10.6.

kennyliao, can you provide some stacktraces, as described in https://jira.mariadb.org/browse/MDEV-32247?focusedCommentId=270421&page=com.atlassian.jira.plugin.system.issuetabpanels:comment-tabpanel#comment-270421?

Reassigned to marko, I'm not sure how I can help further.
