[MDEV-21314] Range Locking: individual rows are locked when scanning PK Created: 2019-12-13  Updated: 2021-02-15

Status: Open
Project: MariaDB Server
Component/s: Storage Engine - RocksDB
Affects Version/s: N/A
Fix Version/s: 10.2

Type: Bug Priority: Major
Reporter: Sergei Petrunia Assignee: Sergei Petrunia
Resolution: Unresolved Votes: 0
Labels: None

Attachments: PNG File screenshot-1.png
Issue Links:
PartOf
is part of MDEV-15603 Gap Lock support in MyRocks Stalled
Relates
relates to MDEV-21186 Benchmark range locking - nov-dec 2019 Closed

 Description

create table ten(a int primary key);

insert into ten values (0),(1),(2),(3),(4),(5),(6),(7),(8),(9);



create table one_k(a int primary key);

insert into one_k select A.a + B.a* 10 + C.a * 100 from ten A, ten B, ten C;



create table t1 (

  pk int primary key,

  a int

);

insert into t1 select a,a from one_k;


begin;

update t1 set a=a+10 where pk between 10 and 20;

select * from information_schema.rocksdb_locks;


+------------------+----------------+-----------------------------------------+------+
| COLUMN_FAMILY_ID | TRANSACTION_ID | KEY                                     | MODE |
+------------------+----------------+-----------------------------------------+------+
|                0 |              6 | 000000010680000015                      | X    |
|                0 |              6 | 000000010680000014                      | X    |
|                0 |              6 | 000000010680000014                      | X    |
|                0 |              6 | 000000010680000013                      | X    |
|                0 |              6 | 000000010680000013                      | X    |
|                0 |              6 | 000000010680000012                      | X    |
|                0 |              6 | 000000010680000012                      | X    |
|                0 |              6 | 000000010680000011                      | X    |
|                0 |              6 | 000000010680000011                      | X    |
|                0 |              6 | 000000010680000010                      | X    |
|                0 |              6 | 000000010680000010                      | X    |
|                0 |              6 | 00000001068000000f                      | X    |
|                0 |              6 | 00000001068000000f                      | X    |
|                0 |              6 | 00000001068000000e                      | X    |
|                0 |              6 | 00000001068000000e                      | X    |
|                0 |              6 | 00000001068000000d                      | X    |

|                0 |              6 | 00000001068000000d                      | X    |

|                0 |              6 | 00000001068000000c                      | X    |

|                0 |              6 | 00000001068000000c                      | X    |

|                0 |              6 | 00000001068000000b                      | X    |

|                0 |              6 | 00000001068000000b                      | X    |

|                0 |              6 | 00000001068000000a                      | X    |

|                0 |              6 | 00000001068000000a                      | X    |

|                0 |              6 | 00000001068000000a - 010000010680000014 | X    |

+------------------+----------------+-----------------------------------------+------+

The output shows overlapping ranges because we're in STO-mode.

 Comments
Comment by Sergei Petrunia [ 2019-12-13 ]

The statement

update t1 set a=a+10 where pk between 10 and 20;

It is executed as scan on PK in [10..20].. and for each found row, MySQL calls GetForUpdate(). GetForUpdate acquires a point lock on the row it is reading.

Comment by Sergei Petrunia [ 2019-12-13 ]

But it doesn't stop there.

TransactionBaseImpl::Put will make this call:

 Status s = TryLock(column_family, key, false /* read_only */,

                true /* exclusive */, do_validate, assume_tracked);

With point locking, PessimisticTransaction::TryLock will reach this:

  // Lock this key if this transactions hasn't already locked it or we require

  // an upgrade.

  if (!previously_locked || lock_upgrade) {

    s = txn_db_impl_->TryLock(this, cfh_id, key_str, exclusive);

  }

where it it will not try to re-acquire the lock.

With Range Locking we'll get here instead:

  // If we are not doing key tracking, just get the lock and return (this

  // also assumes locks are "idempotent")

  if (!do_key_tracking_) {

    return txn_db_impl_->TryLock(this, cfh_id, key_str, exclusive);

  }

and WILL acquire the lock another time.

Comment by Sergei Petrunia [ 2019-12-13 ]

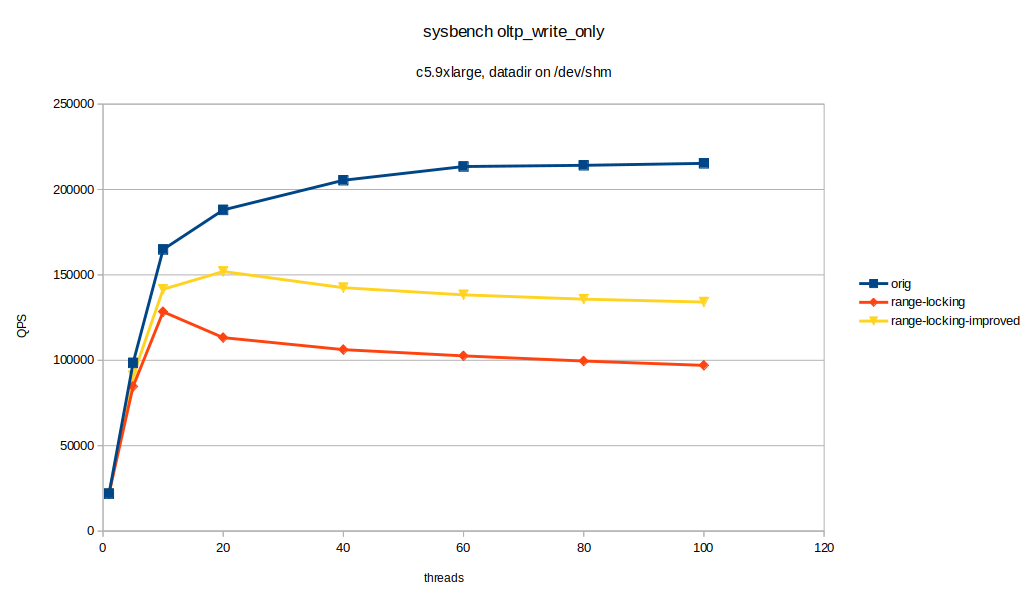

Re-running MDEV-21186 benchmark after fixing this:

Threads	orig	range-locking	range-locking-improved

1	21902.28	22048.75	22070.61

5	98446.24	84649.32	90926.11

10	164867.06	128401.14	141532.38

20	188024.51	113273.4	151987.21

40	205406.05	106224.2	142495.34

60	213448.2	102567.94	138292.55

80	214158.72	99551.03	135784.59

100	215291.05	97012.06	134099.73

Comment by Sergei Petrunia [ 2019-12-13 ]

This is a 30-40% speedup for high-concurrency workloads:

Threads	range-locking	range-locking-improved	speedup

1	22048.75	22070.61	1.001

5	84649.32	90926.11	1.074

10	128401.14	141532.38	1.102

20	113273.4	151987.21	1.342

40	106224.2	142495.34	1.341

60	102567.94	138292.55	1.348

80	99551.03	135784.59	1.364

100	97012.06	134099.73	1.382
